Revolution Microscope Adapter Kit for R1 and R2

This is the Revolution Microscope Adapter Kit for both the R1 and R2 camera packages, and provides between 8x and 40x magnification, and with the R2 e-zoom feature you can gain up to 200x when using the 7" LCD Monitor.

Explore new dimensions with the Revolution: Micro. The Revolution: Micro consists of a microscope lens and a study frame to hold the lens and provide fine focus ability and hold the 7" Revolution Imager LCD.

This Adapter Kit from Revolution includes everything you need (except the R1 or R2 Camera System) to set up your own microscope to view small specimens in high magnification and high resolution. You do not need any other "standard microscope" equipment to make this Kit work.

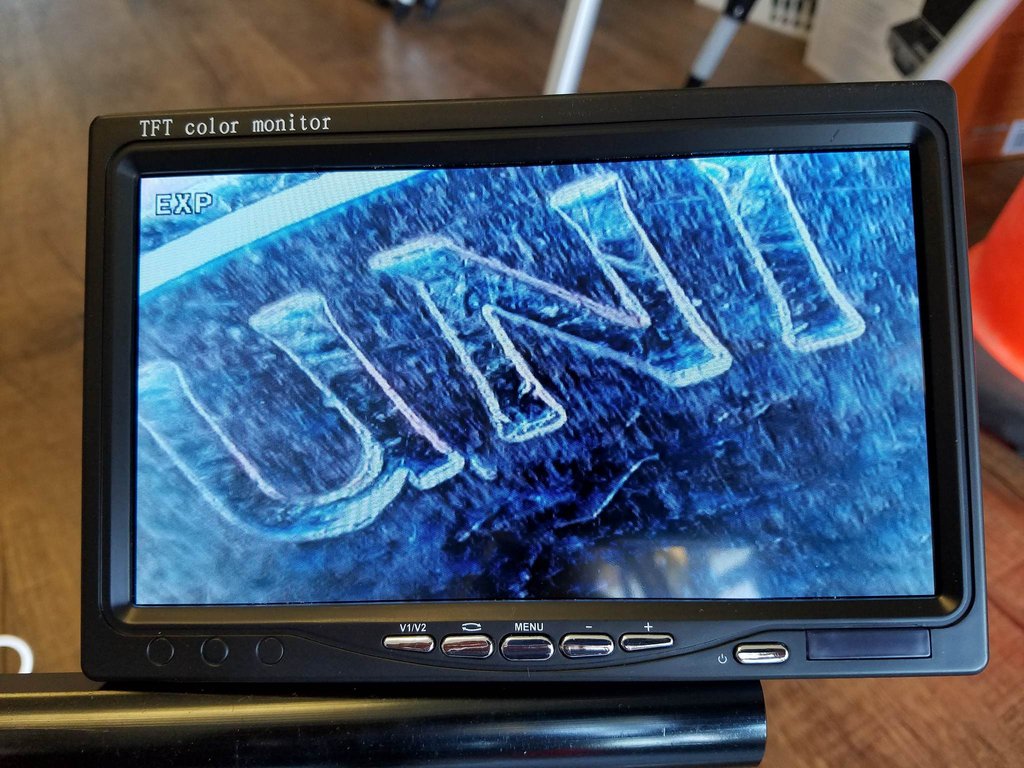

The LCD screen can be mounted on a secure side arm or to the top of the base with the included swivel head to give you freedom and flexibility as to how you want to view the monitor.

The Revolution: Micro opens up your Revolution Imager to the world of microscopy with an easy-to-assemble and easy-to-use set of components which will comprise your own microscope which you can use to inspect and evaluate small objects. Also display the magnified images on the large 7" Revolution Imager LCD Monitor so others can see the details at the same time. You supply the camera and the LCD monitor. (NOTE: camera system and LCD Monitor are NOT included.)

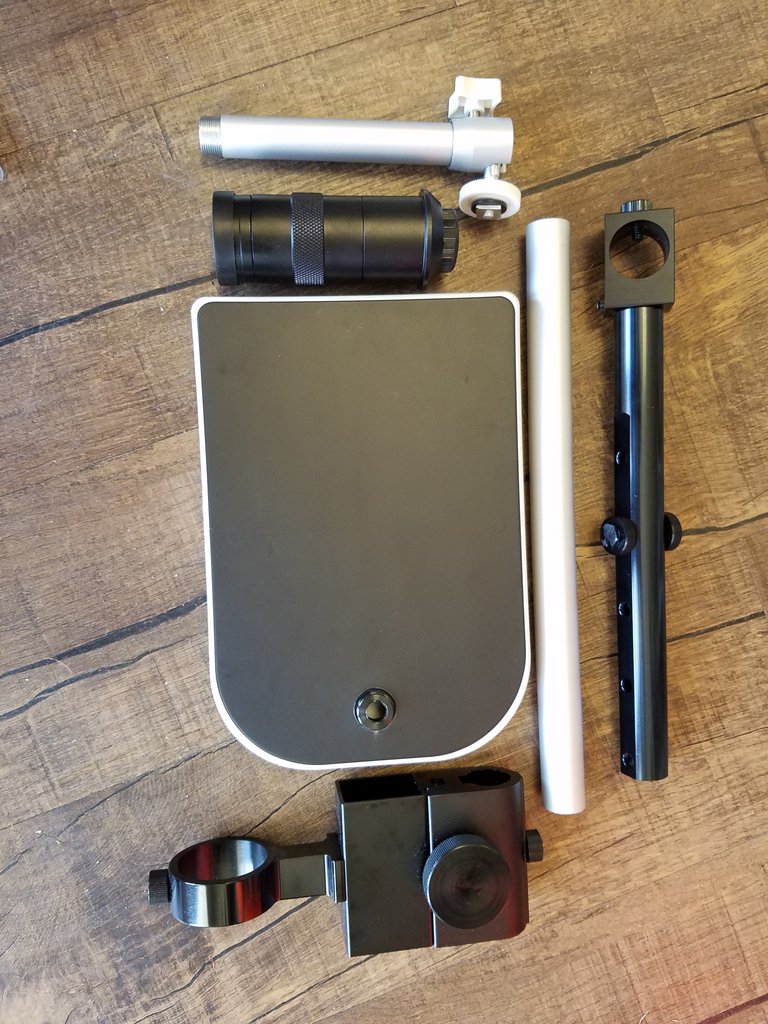

This Revolution Microscope Adapter Kit includes:

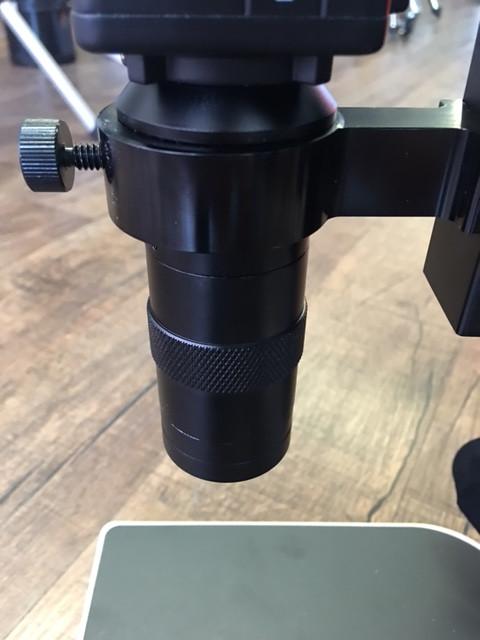

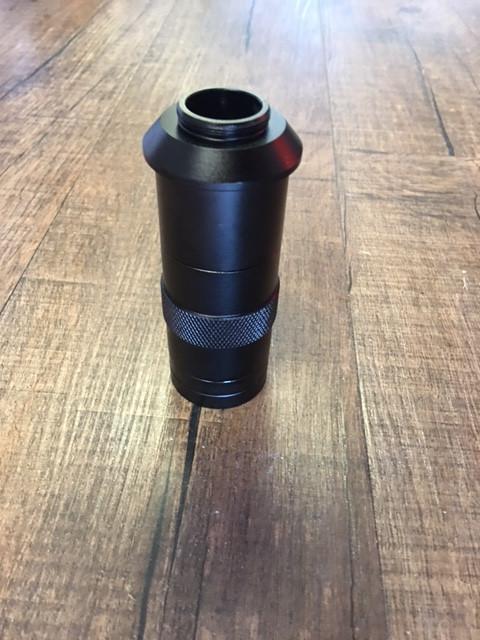

• A C-Mount Microscope Lens
• Working Distance: 43-150 mm

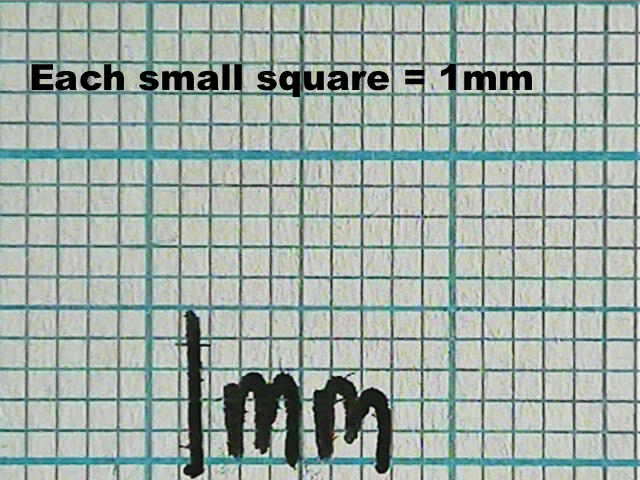

• Visual Field: 2.4 mm-32 mm
• Zoom Range: 8x and 40x (assuming Revolution Imager bundled 7" Monitor)

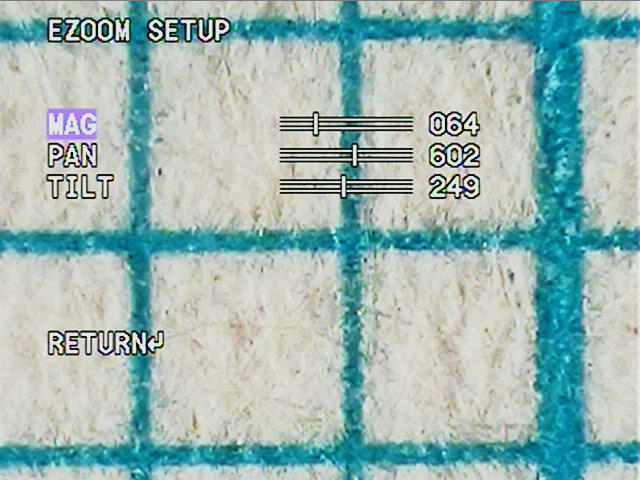

• Zoom Range with R2 Electric Zoom: up to 200x
• A Microscope Pillar
• Height: 29 cm
• A Specimen Platform
• Has Dual monitor mounting options: side arm and top-mounted swivel head
• Construction: aluminium
